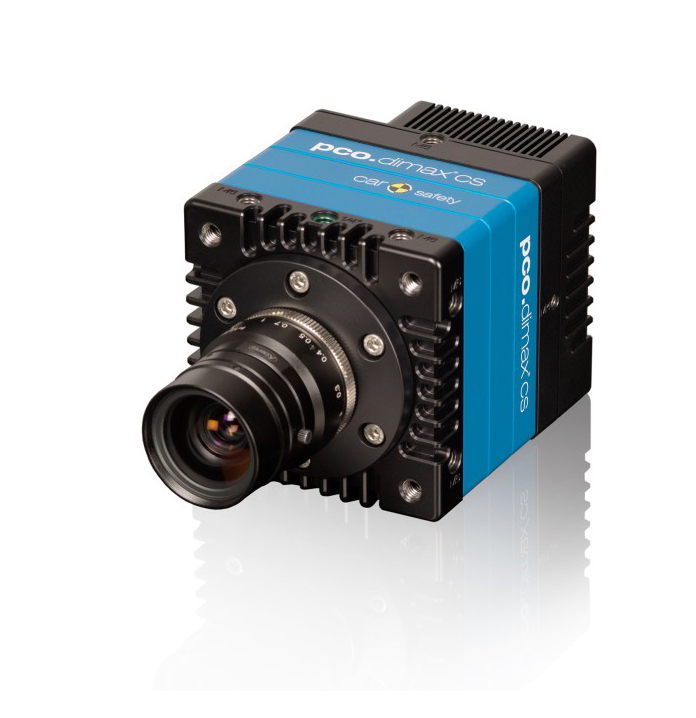

pco.dimax cs

car safety testing with one powerful multi-use tool



The pco.dimax cs camera series has been specifically designed for harsh and demanding applications, e. g. vehicle crash tests. Therefore, the cameras arecompact, lightweight and ruggedized, allowing for being mounted in a multitude of positions (onboardoff-board). Its excellent light sensitivity and outstanding image quality classify the slow motion videos for precise analysis and measurements.Multiple lens mounts (incl. electronic lens control), HD-SDI video output and the automatic image calibration feature make the cameras a versatile and powerful tool.







Key Features



  • 1102 fps @ 2016 x 2016 resolution | cs4
  • 1603 fps @ 1920 x 1440 resolution | cs3
  • 3086 fps @ 1296 x 1024 resolution | cs1
  • 12 bit dynamic range
  • 9 GB internal camera memory
  • high-G ruggedized body (150G for 11 ms)
  • secure trigger & sync modes
  • excellent light sensitivity
  • quick-change lens adapter
  • automatic image calibration
  • HD-SDI output
  • electronic Canon lens control (optional)



Areas of application


car safety testing, airbag behavior analysis, automotive component testing, crash & sledge test, super slow motion movie clips, short time physics, spray analysis, hyper velocity impact studies, material testing, tensile tests, airbag inflation, fast flow visualizationspray imaging, hydrodynamics,fuel injection, sparks in electronical switches,  combustions imagingfast events in nature and industry
