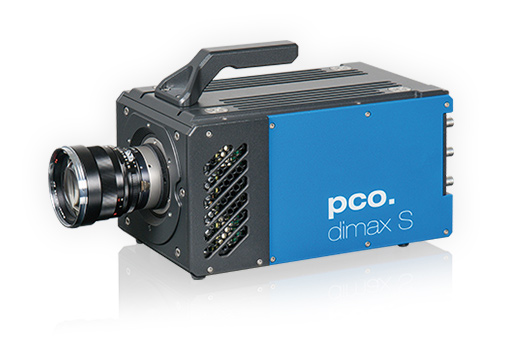

pco.dimax S4

pco.dimax S4
super slow motion with high resolution

The pco.dimax S series provides super slow motion with high resolutions for a variety of applications. The model S4 delivers exciting frame rates in combination with high light sensitivity and high dynamic range.
The image data can be transferred via Gigabit Ethernet, USB 3.0 or CameraLink interface. A diversity of trigger and synchronization possibilities makes the pco.dimax a real multi-tool.

Airbag- or material testing, flow and velocity analysis, quality control or impact studies – pco.dimax S cameras are flexible in their performance for use in different applications.



Key Features



  • 1279 fps @ 2016 x 2016 pixel full resolution
  • 4502 fps @ 1008 x 1008 pixel
  • excellent image and color quality
  • 12 bit dynamic range
  • NO additional black reference calibration required
  • 9, 18, 36 GB inbuilt image memory
  • exposure time range 1.5 µs - 40 ms
  • multiple trigger options
  • master-slave camera synchronisation (up to 5 cameras)
  • IRIG B timecode function
  • smart battery control
  • Interfaces: USB 3.0, GigE/USB 2.0, HD-SDI, CameraLink



Technical Data



parameterunitsetpointpco.dimax S1 / S4
resolution
(hor x ver)
pixel 1008 x 1008 /
2016 x 2016
pixel size
(hor x ver)
  11.0 x 11.0
peak quantum
efficiency
%@ 600 nm typ.50
dynamic range A/Dbit 12
readout noisee- rms 23
imaging frequency,
frame rate
fpsS1: mono (color)
S4: mono (color)
4467 (4467) /
1279 (1102)
exposure time
range
s 1.5
region of interest
(ROI)
 steps of48 x 4 pixel
(centered)
optical input  Nikon f-mount
data interface  GigE, USB 2.0,
camera link (base),
USB 3.





Areas of application

high speed particle image velocimetry (PIV), hyper velocity impact studies,  automobile crash tests, tensile tests,  airbag inflation, spray imaging, hydrodynamics, sparks in electronical switches, combustions imaging, semiconductor quality control, fast events in nature and machine, super slow motion
