pco.dimax HD / HD+

pco.dimax HD / HD+
leading image quality in high definition

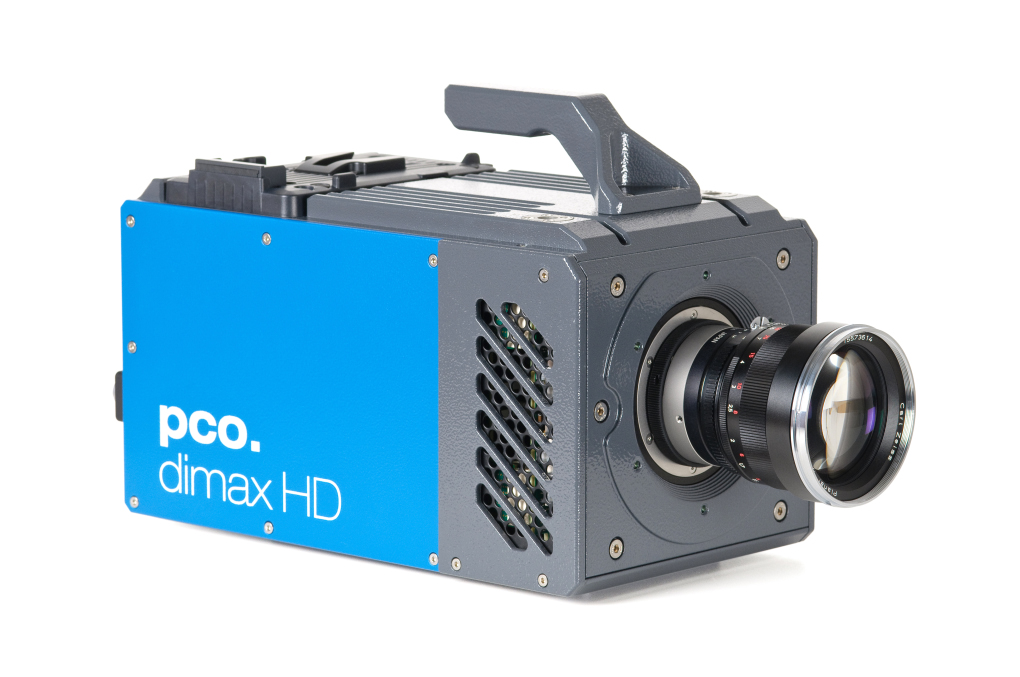

The pco.dimax HD series combines advanced CMOS- and camera technology. High light sensitivity and best dynamic range complement each other to brilliant Full-HD images – with frame-rates of more than 2000fps.
Especially for automotive car safety tests the HD+ version with 1920 x 1440 pixelsoffers an aspect ratio of 4:3 to display full scale crash- or sledge testing scenarios. Both models provide a variety of trigger options and synchronization possibilities.

A smart battery control allows operation without direct power supply and backup of image data in the camera. The optional HD-SDI interface supplies images directly to HD-SDI devices.



Key Features

  • 2128 fps @ Full HD resolution (1920 x 1080 pixel)
  • 1603 fps @ 2.8 MPix resolution (1920 x 1440 pixel)
  • 3822 fps @ 1.0 MPix resolution (1008 x 1000 pixel)
  • 12 bit dynamic range
  • excellent image and color quality
  • NO additional black reference calibration required
  • exposure time range 1.5 µs - 40 ms
  • multiple trigger options
  • master-slave camera synchronisation (up to 5 cameras)
  • IRIG B timecode function
  • smart battery control
  • image memory in camera (camRAM up to 36 GB)
  • interfaces: USB 3.0, GigE/USB 2.0, HD-SDI, CameraLink



Technical Data



parameterunitsetpointpco.dimax HD / HD+
resolution
(hor x ver)
pixel 1920 x 1080 /
1920 x 1440
pixel size
(hor x ver)
  11.0 x 11.0
peak quantum efficiency%@ 600 nm50
dynamic range A/Dbit 12
readout noisee- rms 23
imaging frequency,
frame rate
fps@ 1920 x 1080 pixel (HD)
@ 1920 x 1440 pixel (HD+)
2128 / 1603
exposure time ranges 1.5
region of interest
(ROI)
 steps of48 x 4 pixel
(centered)
optical input  Nikon f-mount
data interface  GigE, USB 2.0,
camera link
(base), USB 3.

Areas of application



automobile crash tests, airbag inflation, material testing, fuel injection, high speed particle image velocimetry (PIV), short time physics, sparks in electronical switches, spray analysis, hyper velocity impact studies,fast flow visualization,  hydrodynamics,  highspeed photogrammetry
