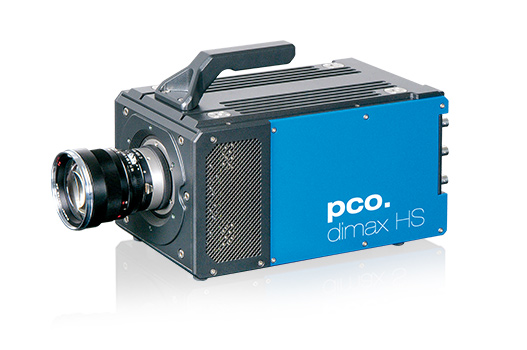

pco.dimax HS4



pco.dimax HS4
highest frame rates for extreme fast events

The pco.dimax HS series combines, with its advanced CMOS- and electronics technology, extreme high frame-rates, best light sensitivity and a real 12 bit dynamic range.

With more than 7000 fps at a resolution of 1 megapixel rapid events can be precisely imaged in super slow motion. Due to a variety of trigger- and synchronization possibilities the HS-cameras are suitable for challenging setups like engine research, flow analysis, material testing and further application areas.



Key Features



  • 2277 fps @ 4 MPix resolution (2000 x 2000 pixel)
  • 7039 fps @ 1 MPix resolution (1000 x 1000 pixel)
  • excellent light sensitivity
  • 12 bit dynamic range
  • NO additional black reference calibration required
  • 9, 18, 36 GB inbuilt image memory
  • exposure time range 1.5 µs - 40 ms
  • multiple trigger options
  • master-slave camera synchronisation (up to 5 cameras)
  • IRIG B timecode function
  • Interfaces: USB 3.0, GigE/USB 2.0, CameraLink



Technical Data



parameterunitsetpointpco.dimax HS4
resolution
(hor x ver)
pixel 2000 x 2000 /
1400 x 1050
pixel size
(hor x ver)
  11.0 x 11.0
peak quantum
efficiency
%@ 600 nm typ.50
dynamic range A/Dbit 12
readout noisee- rms < 20
imaging frequency,
frame rate
fps@ full frame
@ 1000 x 1000 pixel
2277 / 5469
> 7000
exposure time
range
s 1.5
region of interest
(ROI)
 steps of2 x 2
optical input  Nikon f-mount
data interface  GigE, USB 2.0,
camera link (base),
USB 3.0





Areas of application





material testing,   airbag inflationhighspeed particle image velocimetry (PIV)  , tensile testing,  short time physics,   deformation,   machine vision,   industrial quality controlhypervelocity impact studies,    fuel injection,   ballistics,   abrasive material research,   sparks in electronical switches
