sCMOS 카메라

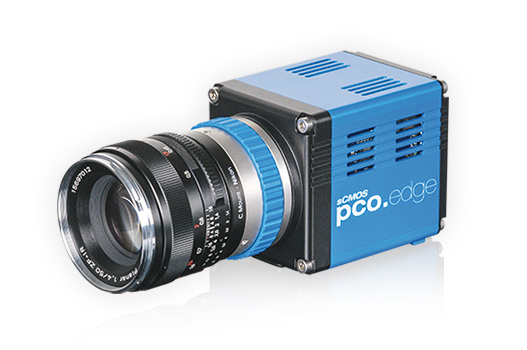

pco.edge 4.2

pco.edge 4.2
Groundbreaking sCMOS technology in a compact design

The pco.edge 4.2 is is equipped with an innovative scientific CMOS sensor providing crisp images and precise measurements. The pco.edge series can be optionally upgraded with a water cooling system.

PCO’s edge 4.2 camera system is designed for users who require highest  quantum efficiency, best 16 bit dynamic range, high frame rates, long exposure times andextremely low readout noise.



Key Features

  • thermal stabilization at 0°C / +5 °C
  • extreme low readout noise of 0.8 e- med
  • high resolution of 2048 x 2048 pixel
  • dynamic range of 40 000 : 1 (USB) / 35 500: 1 (CL)
  • quantum efficiency up to 82%
  • exposure times from 100 µs to 20 s
  • maximum frame rate 100 fps
  • rolling shutter or global reset (USB) mode
  • lightsheet mode
  • camera link full or USB 3.0 interface
  • small form factor: 102 x 79 x 70 mm
  • optional: water cooling system


parameterunitsetpointpco.edge 4.2
resolution (hor x ver)pixel 2048 x 2048
pixel size
(hor x ver)
  6.5 x 6.5
peak quantum efficiency%@ 590 nm typ.> 70
dynamic range A/Dbit 16
readout noisee- med@ 30 fps
@ 100 fps
< 0.8
< 1.0
imaging frequency,
frame rate
fps@ full frame @ slow scan
@ full frame @ fast scan
35
100
exposure time ranges@ rolling shutter500
region of interest
(ROI)
  selectable
optical input  Nikon f-mount,
c-mount
data interface  camera link
(full, 10tap)
or USB 3.0


  • Quantum Efficiency curve of the CIS2020A and the CIS2020
  • Comparison between a scientific CCD (left) and a scientific CMOS (right, pco.edge) camera with identical illumination.

Areas of application

GSDIM,  PALM ,  STORM , SPIM,  SIM , live cell microscopy , single molecule detection , lightsheet microscopy , spinning disk confocal microscopy , FRET,  FRAP, fluorescence spectroscopy , bio- & chemi-luminescence , high content screening , photovoltaic inspection, ophtalmology , flow cytometry
