pco.edge 3.1

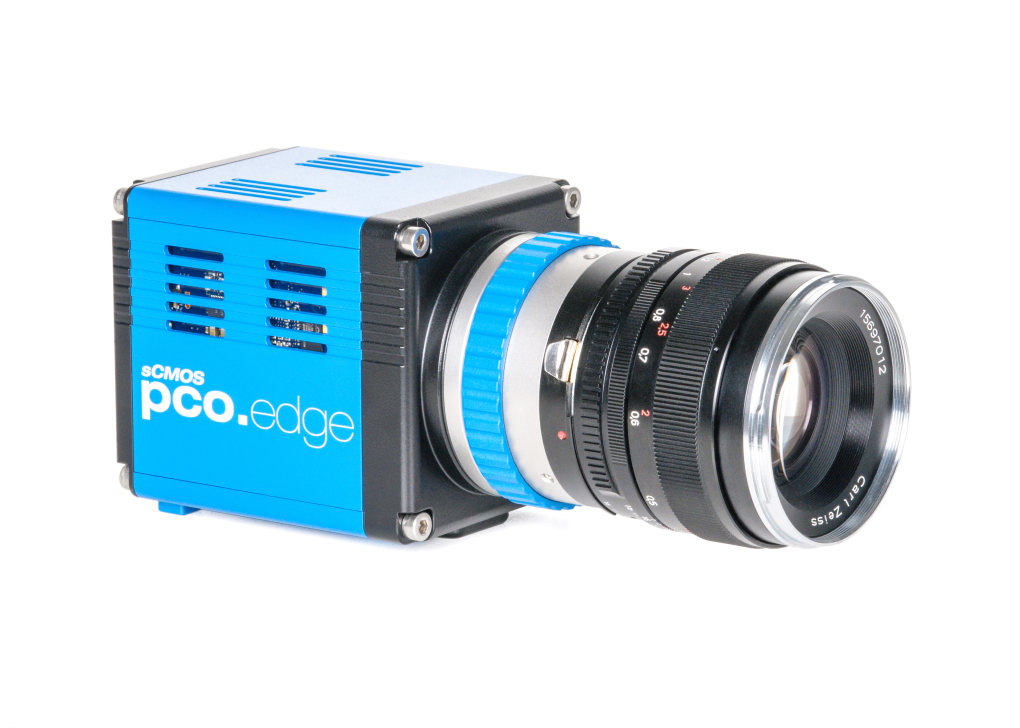

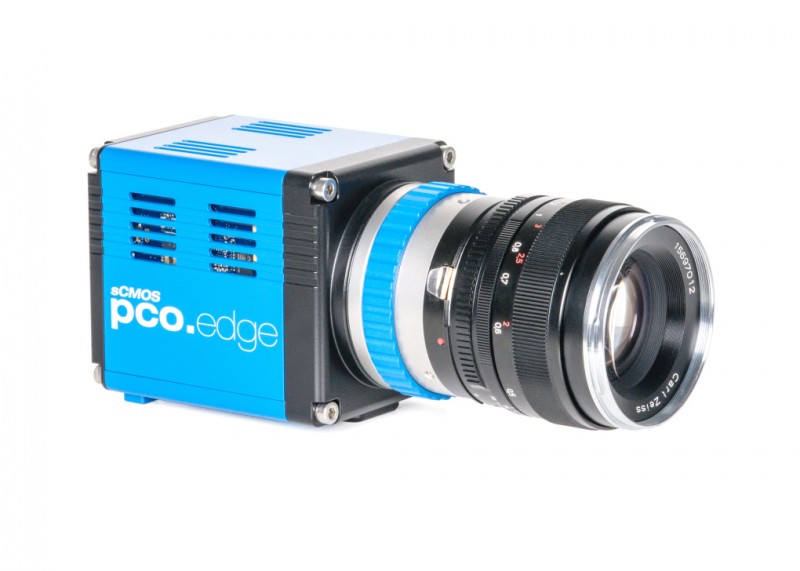

pco.edge 3.1
Revolutionary sCMOS technology in a compact design

The pco.edge 3.1 is equipped with an innovative scientific CMOS sensor providing crisp images and precise measurements.

PCO’s edge 3.1 camera system is designed for users who require high resolution, high frame rates, best 16 bit dynamic range, good quantum efficiency, selectable shutter options or optionally a color sensor.



Key Features

  • thermal stabilization at +5 °C
  • extreme low readout noise of 1.1 e- med
  • high resolution of 2048 x 1536 pixel
  • dynamic range of 27 000 : 1
  • quantum efficiency up to 60%
  • rolling shutter: 500µs to 2s
  • global shutter: 20µs to 100ms
  • maximum frame rate 50 fps
  • USB 3.0 interface
  • small form factor: 102 x 79 x 70 mm

parameterunitsetpointpco.edge 3.1
resolution
(hor x ver)
pixel 2048 x 1536
pixel size
(hor x ver)
  6.5 x 6.5
peak quantum efficiency%@ 590 nm typ.> 60
dynamic range A/Dbit 16
readout noisee- med < 1.1
imaging frequency,
frame rate
fps 50
exposure time ranges@ rolling shutter
@ global shutter
@ global reset rolling readout
500
region of interest
(ROI)
  selectable
optical input  Nikon f-mount,
c-mount
data interface  USB 3.0







QE Curves



  • pco.edge image qualityComparison between a scientific CCD (left) and a scientific CMOS (right, pco.edge) camera with identical illumination.
  • pco.edge scmos QE curveMonochrome Quantum Efficiency curve of the CIS2521 (EMVA1288 measurement)
  • pco.edge scmos QE curve color sensorColor Quantum Efficiency curves of the pco.edge (EMVA1288 measurement)





Areas of application

GSDIM,  PALM ,  STORM , SPIM,  SIM , live cell microscopy , single molecule detection , lightsheet microscopy , spinning disk confocal microscopy , FRET,  FRAP, fluorescence spectroscopy , bio- & chemi-luminescence , high content screening , photovoltaic inspection, ophtalmology , flow cytometry
