NIKON

SMZ1270/1270i

제이엠제이 0 1,825

Stereo Microscope

SMZ1270/1270i



Incredible sharpness throughout a wide magnification range



The SMZ1270/1270i offers the highest-in-class zoom ratio of 12.7x (0.63 - 8x).
It offers wide viewfield at low magnification, enabling easy confirmation of observation targets, while its cutting-edge optics provide bright and sharp images through the entire viewfield. The SMZ1270i is also equipped with intelligent functions that enable automatic detection of magnification data.

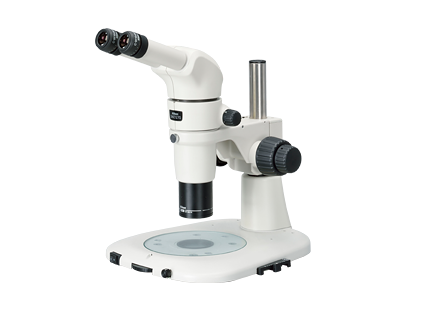

SMZ1270 with LED diascopic illumination stand


SMZ1270i with trinocular tilting tube, intelligent nosepiece and LED diascopic illumination stand

Highest-in-class zoom ratio


SMZ1270/1270i enables
observation of the whole of a 35 mm petri dish.

Wide zoom range

The SMZ1270/1270i offers the highest-in-class zoom ratio of 12.7x (0.63 - 8x). It offers both low-magnification wide viewfield observation of the whole of a 35 mm petri dish* during screening and high-magnification observation of minute cell structures.

  • *With 1x objective at the lowest magnification.


Sample: Ampulex

Newly developed objectives

The newly developed WF series objectives offer uniformly bright images even at low magnification and wide viewfield observation when used with the SMZ1270/1270i. In addition, a 0.75x objective is now available, expanding the lineup of low magnification objectives.

High-level chromatic aberration correction

Apochromat optics have been adopted for the lenses in the SMZ1270/1270i zoom body to achieve high-level chromatic aberration correction. They provide sharp images without blur or color fringe.

Intelligent function for status readout (SMZ1270i)

In combination with the Camera Control Unit DS-L3 and imaging software NIS-Elements, the SMZ1270i can detect zoom magnification data. In addition, with the Intelligent Nosepiece P-RNI2 attached, data related to the objective in use is also detected. Calibration data is automatically altered, following changes of magnification, to display the appropriate scale and measurement results on the images.


Detects zoom magnification and objective information, and changes calibration automatically.

Easy to use

On-axis observation with the nosepiece


On-axis view

The double nosepiece offers easy on-axis imaging, enabling observation of the bottom of holes, accurate simple measurement and extended depth-of-focus (EDF) imaging without distortion.

Ergonomic design

Eyepiece tubes with a range of inclination angles are available for comfortable observation. They offer the optimum eyelevel for each user. In addition, slim-type plain stands and the LED Diascopic Illumination Stand easily facilitate the presentation and removal of specimens.


Observation posture


With the LED Diascopic Illumination Stand and Fiber Diascopic
Illumination Stand, focus control during observation is possible
using the dial in front of the base.

Expandable with a wide range of accessories

In addition to basic optional accessories, the same high level of accessories used with superior models are also available for these models. These include trinocular tubes and slim-type LED diascopic illumination stands. These allow various microscope configurations to suit numerous routine inspections and a range of research and development applications.


Sample: Fibers


Sample: Semiconductor


Sample: Brain of adult drosophila excited with GFP
Image courtesy of Hokto Kazama, Ph.D., Circuit Mechanisms of Sensory Perception, Brain Science Institute, RIKEN

OCC illumination


OCC illumination boosts the contrast of transparent sample structures.
Sample: Hemicentrotus pulcherrimus in two-cell stage



With the LED Diascopic Illumination Stand and Fiber Diascopic Illumination Stand, image contrast under OCC illumination can be easily adjusted.



 Specifications

 SMZ1270SMZ1270i
Optical systemParallel-optics type (zooming type)
Zoom ratio12.7 : 1
Zoom range0.63 - 8x (0.63/1/2/3/4/6/8x stops)
Total magnification3.15 - 480x (depending on eyepiece and objectives)
(with coaxial episcopic illuminator: 15 - 540x)
TubesEyepiece inclination: 20° (P-B Binocular Tube) / 15° (P-TL100 Trinocular Tube) / 0°-30° (P-TERG100 Trinocular Tilting Tube, P-TERG50 Trinocular Tilting Tube)
EyepiecesC-W10xB (F.N. 22), C-W15x (F.N. 16), C-W20x (F.N. 12.5), C-W30x (F.N. 7)
ObjectivesPlan Apo 0.5x/WF, Plan Apo 0.75x/WF, Plan Apo 1x/WF, ED Plan 1.5x/WF, ED Plan 2x/WF
Working distance70 mm (with Plan Apo 1x/WF)
Weight (approx.)9.8 kg (with P-B Binocular Tube+ P-DSL32 LED Diascopic Illumination Stand)11.9 kg (with P-TERG100 Trinocular Tilting Tube + P-DSL32 LED Diascopic Illumination Stand)

Dimensions

SMZ1270 set


SMZ1270 + P-B Binocular Tube + Plan Apo 1x/WF + P-PS32 Plain Stand

SMZ1270i set


SMZ1270i + P-TERG100 Trinocular Tilting Tube + Plan Apo 1x/WF + Intelligent Nosepiece P-RNI2 + P-DSL32 LED Diascopic Illumination Stand
