Inverted Research Microscope

ECLIPSE Ts2R



Easy to Work withVersatile observation with LED illuminatorCompact bodyHigh precision and quality





Do more than before
A compact inverted research microscope configurable with a wide variety of observation methods

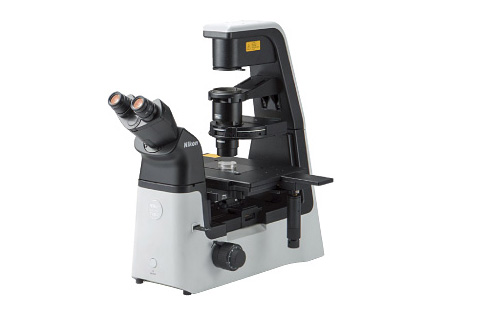

The ECLIPSE Ts2R sets a new standard for the inverted research microscope, providing a wide range of observation methods and applications in a compact body that can easily fit in limited laboratory spaces while maintaining excellent operability.

ECLIPSE Ts2R
Diascopic illumination model

ECLIPSE Ts2R-FL
Diascopic and Epi-fluorescence illumination model

Easy to work with

Simple operations

Control buttons on the Ts2R microscope are intuitively located for a streamlined workflow. The on/off and Diascopic/Epi-fluorescence switching controls are located on the front panel while buttons pertaining to either Diascopic or Epi-fluorescence control are zoned to the left and right sides of the microscope body, respectively.

New ergonomic stage design for improved workflow

The Ts2R’s stage height has been lowered by approximately 30% compared to the standard research microscope*, thereby ensuring a comfortable hand position during repetitive operation and sample exchange. Moreover by lowering the support columns and positioning the camera port on the side of the tube, sample visibility is improved.

  • *Comparison with Nikon's Inverted Research Microscope ECLIPSE Ti.

Newly developed mechanical stage option

The Ts2R can be configured with an optional rectangular mechanical stage. This stage provides a long travel stroke, enabling users to observe an entire well plate from end-to-end. You can also set limits to the travel stroke (three-way) to match frequently used samples or vessels. The stage handle is offered in two lengths, long or short, to further accommodate the user's needs.


Stroke adjustment using the XY limit pin (three way)

High S/N Epi-florescence observation in bright rooms

The new Contrast Shield accessory (optional) blocks room light, providing an easy and cost-effective method for achieving high signalto-noise fluorescence observation in a brightly lit laboratory.

Versatile observation with LED illuminator

The high-intensity LED light source enables you to perform a wide variety of observation methods similar to the full-size, inverted research microscope ECLIPSE Ti. The Ts2R-FL model, which offers Epi-fluorescence observation, provides four fluorescence channels and 7 different wavelengths to choose from.


DIC


Epi-fluorescence

New Contrasting Technique, "Emboss Contrast"


Image courtesy of Hideaki Watanabe, Ph.D. and Hisataka Hasegawa, Ph.D.

Nikon's new contrasting technique is compatible with both plastic and glass culture dishes. Unlike phase contrast or NAMC, Emboss Contrast does not require special objective lenses and therefore has minimal effect on Epi-fluorescence observation. Emboss Contrast allows thick samples such as embryos to be easily observed in pseudo-three-dimensional image with great clarity.

Compact body

Compact body streamlines your work

Illumination modules including the Epi-fluorescence light source have been seamlessly incorporated into the microscope main body, resulting in a compact and simple design form that's also durable. The compact structure is also vibration-resistant to provide highly stable sample observations.

Easily fits inside laminar flow hoods

The compact size of the Ts2R microscope makes it easier to store and operate inside a laminar flow hood. Additionally, the low stage and side-port camera position reduce user fatigue from repetitive stage manipulation and provides clear visibility of the stage and sample even with the hood sash lowered.

High precision and quality

Advanced-optical performance

The Ts2R is compatible with Nikon's acclaimed CFI60 objective lenses which provide high numerical apertures and long working distances to deliver stunningly clear images.

High performance and quality optical accessories

Optical accessories achieve the same performance level as Nikon's inverted research microscope ECLIPSE Ti, providing exceptionally clear, sharp images.



ModelTs2RTs2R-FL
Optical SystemCFI60 Infinity Optical System
ObservationBright Field, Apodized Phase Contrast, Phase Contrast, Nikon Advanced Modulation Contrast, DIC, Emboss ContrastBright Field, Apodized Phase Contrast, Phase Contrast, Nikon Advanced Modulation Contrast, DIC, Emboss Contrast, Epi-Fluorescence
IlluminationDiascopic
illumination
High luminescent white LED illuminator (Eco-illumination), Built-in Fly eye lens
Episcopic
illumination
LED illuminator, built-in Fly eye lens,
can be configured with up to 4 different fluorescence LED units; available wavelengths:385, 455, 470, 505, 525, 590, 625 nm
Tube
  • Binocular tube: Inclination: 35 degree
  • Ergonomic tube: Inclination:15-35 degree
    Siedentopf type, Pupillary distance: 50-75 mm
Eyepiece(F.O.V.)10x (22), 12.5x (16), 15x (14.5)
FocusingVia nosepiece up/down movement, Stroke (manual): Up 8 mm, down 3 mm
Coarse stroke: 5.0 mm per rotation, Fine stroke: 0.1 mm per rotation, Coarse motion torque adjustable, Refocusing mechanism mounted
NosepieceSextuple nosepiece, With DIC prism slots
CondenserCondenser turret, mount up to 7 modules: Phase Contrast, DIC, NAMC, IMSI, Emboss Contrast and ND for Bright Field
Use with any one of ELWD condenser lens, LWD condenser lens and NAMC condenser lens
Slider
  • Precentered or Centering PH Slider, 10x, 20x, 40x Objectives available for Phase Contrast
  • Emboss contrast sliders(eyepiece-tube-side slider must be mounted), 10x, 20x, 40x, 60x objectives available for emboss contrast
Stage
  • Plain Stage, Stage Size 260 (X) x300 (Y) mm
  • Rectangular Mechanical Stage Stroke: 114 (X) x73 (Y) mm
    Adjustable XY stroke limit
    Accepts 8 types of micro-testplate
Holder
  • C-S-HP35 Petridish Holder 35 mm
  • C-S-HLP100 Petridish Holder 100 mm
  • C-S-HT Terasaki Holder for Terasaki holder and φ65 dish
  • C-S-HS Slide Glass Holder for glass slides, φ54 dish and hemocytometer
  • C-S-HU Universal Holder for Terasaki plate holder, glass slide, φ35-65 dish and hemocytometer
  • C-S-HG Glass Ring Holder
  • C-S-HLS Ring Holder Set
  • TC-S-HA Acrylic Holder
Epi Fluorescence attachmentEpi-fluorescence filter turret (with main body)
Filter cubes with noise terminator mechanism
Configure with up to 4 Epi-fluorescence filter cubes, one position is used during bright-field observation
Attachable Contrast Shield (optional; LWD,ELWD)
Dimensions286 (W) ×495 (D) ×542 (H) mm286 (W) ×495 (D) ×542 (H) mm
Weight(approx.)17kg18kg
Rated Voltage/Electric Current100V-240V, Less than 0.65A
Power Consumption (nominal value)30W
  • *1APC (Apodized Phase Contrast) is a type of phase contrast observation with reduced halo, thanks to Nikon’s unique lens coating.
  • *2NAMC (Nikon Advanced Modulation Contrast) is Nikon’s unique modulation contrast observation method which provides stereoscopic images similar to DIC observation, even with samples on plastic dishes.
  • *3Emboss contrast is Nikon’s unique contrast observation method. It provides pseudo-three-dimensional images using focal illumination, which gives high contrast to samples.
