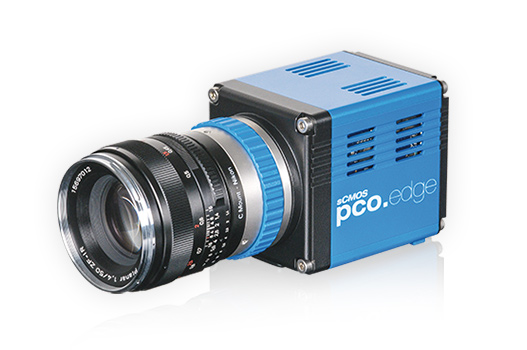

pco.edge 5.5

Revolutionary sCMOS technology in a compact design

The pco.edge 5.5 is equipped with an innovative scientific CMOS sensor providing crisp images and precise measurements. The pco.edge series can be optionally upgraded with a water cooling system.

PCO’s edge 5.5 camera system is designed for users who require high resolution, high frame rates, best 16 bit dynamic range, good quantum efficiency, selectable shutter options or optionally a color sensor.






  • thermal stabilization at 0°C / +5 °C
  • extreme low readout noise of 1.0 e- med
  • high resolution of 2560 x 2160 pixel
  • dynamic range of 30 000 : 1 (USB) / 27 000 : 1 (CL)
  • quantum efficiency up to 60%
  • exposure times from 500 µs to 2s (RS)
  • maximum frame rate 100 fps
  • rolling shutter or global shutter / global reset functionality
  • lightsheet mode
  • camera link full or USB 3.0 interface
  • Monochrome or color sensor
  • small form factor: 102 x 79 x 70 mm
  • optional: water cooling system




parameterunitsetpointpco.edge 5.5
resolution
(hor x ver)
pixel 2560 x 2160
pixel size
(hor x ver)
  6.5 x 6.5
peak quantum efficiency%@ 590 nm typ.> 60
dynamic range A/Dbit 16
readout noisee- med@ 30 fps
@ 100 fps
< 1.0
< 1.5
imaging frequency,
frame rate
fps@ full frame @ slow scan
@ full frame @ fast scan
33
100
exposure time ranges@ rolling shutter
@ global shutter
@ global reset rolling readout
500
region of interest
(ROI)
  selectable
optical input  Nikon f-mount,
c-mount
data interface  camera link
(full, 10tap)
or USB 3.0




1948312068_vhKlVqTF_1b3946701ca7c8ca8b73

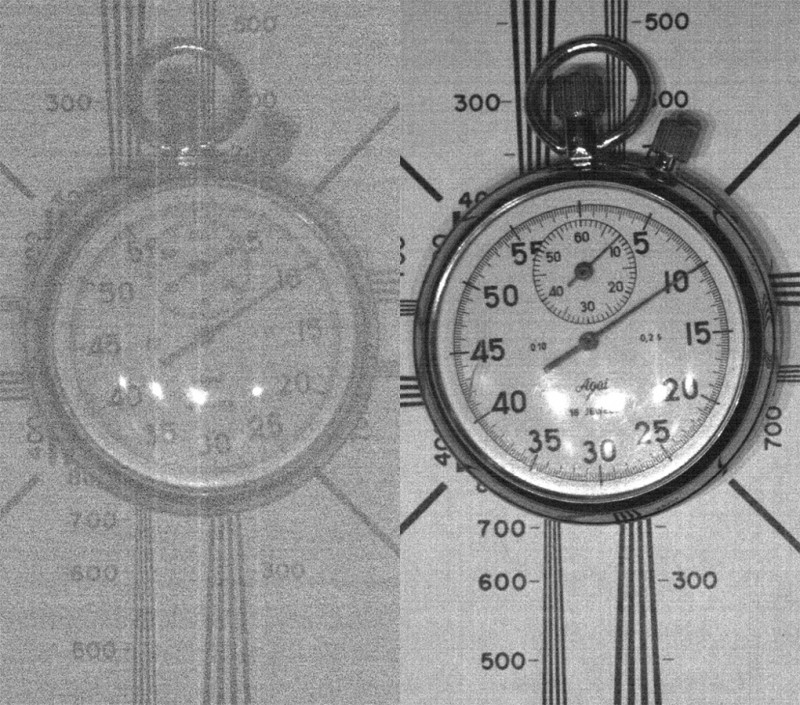

Comparison between a scientific CCD (left) and a scientific CMOS (right, pco.edge) camera with identical illumination.

1948312068_l5rHu16Z_b271ebf8191028185414

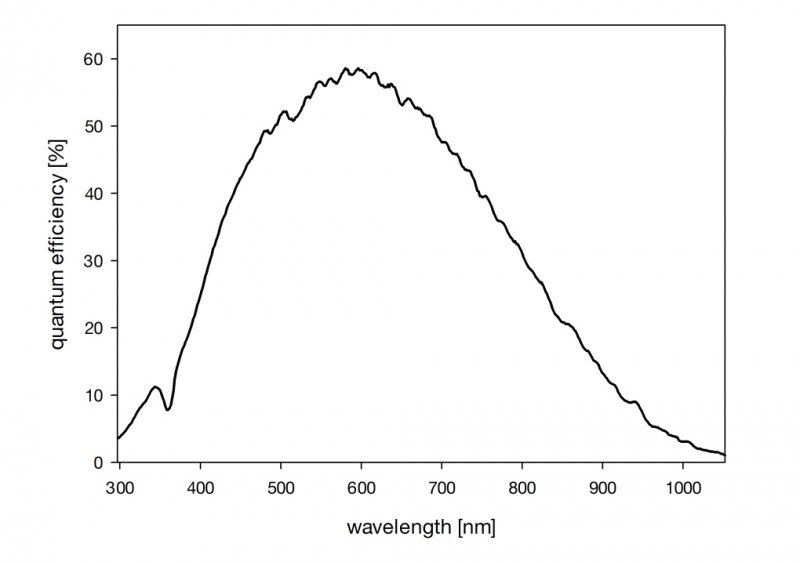

Monochrome Quantum Efficiency curve of the CIS2521 (EMVA1288 measurement)

1948312068_zDgZCF4w_0a89809afd63aab7a517

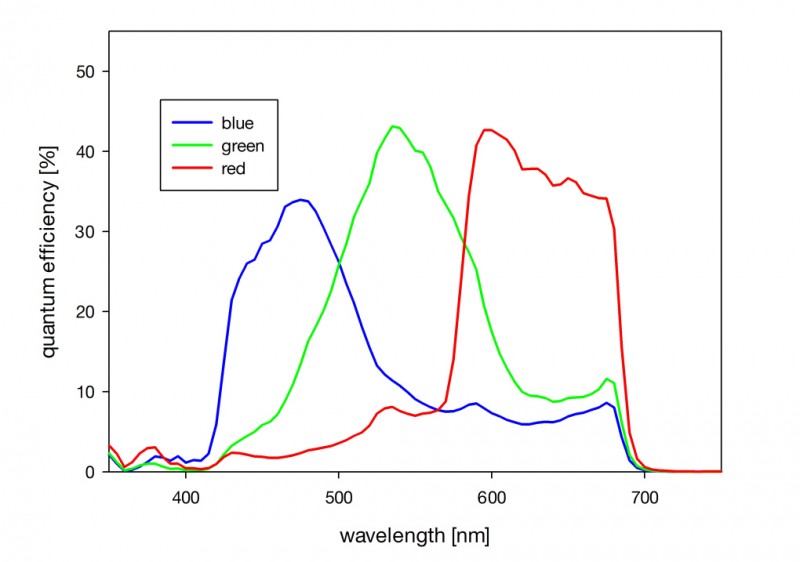

Color Quantum Efficiency curves of the pco.edge (EMVA1288 measurement)



 GSDIM , PALM , STORM , SPIM,SIM,  live cell microscopy , single molecule detection , lightsheet microscopy , spinning disk confocal microscopy , FRET , FRAP, fluorescence spectroscopy , bio- & chemi-luminescence , high content screening , photovoltaic inspection,  ophthalmology , flow cytometry
